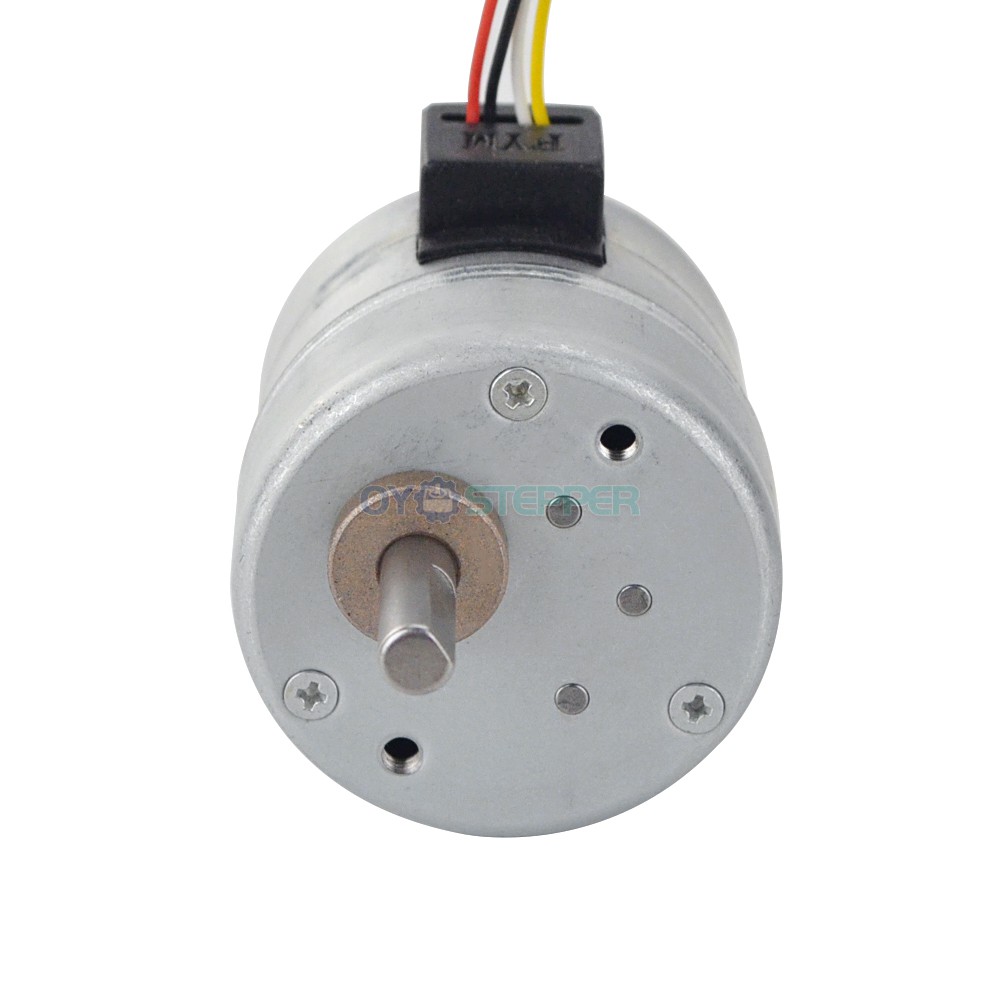

35PM48L01-SG10 PM Geared Stepper Motor
2022-08-31
ID: #836298
Listed In : Shopping
Business Description
Electrical Specification Manufacturer Part Number: 35PM48L01-SG10 Motor Type: PM Stepper Phase: 2 Step Angle: 0.694 deg Rated Current/phase: 0.24 A Holding Torque: 69.58 Ncm(98.55 oz.in) Phase Resistance: 100 ± 7% ohms(20 ℃) Inductance: 110 mH ± 20% Physical Specification Frame Size: Φ35 mm Body Length: 36.2 mm Gearbox Length: 15.2 mm Shaft Diameter: Φ5 mm Shaft Length: 17.1 mm D-cut Length: 10.1 mm Gearbox Type: Spur Gear Ratio: 10.8 Number of Leads: 4 with connector Molex5264 Lead Length: 140 mm Weight: 139 g
Frequently Asked Questions
Where is 35PM48L01-SG10 PM Geared Stepper Motor located?
35PM48L01-SG10 PM Geared Stepper Motor is located at guangzhou.
How can customers contact 35PM48L01-SG10 PM Geared Stepper Motor?
Customers can contact 35PM48L01-SG10 PM Geared Stepper Motor by phone at 8602368438829.
Does 35PM48L01-SG10 PM Geared Stepper Motor have an official website?
Yes, the official website of 35PM48L01-SG10 PM Geared Stepper Motor is https://www.oyostepper.com/category-69-b0-PM-Stepper-Motor.html.
Is 35PM48L01-SG10 PM Geared Stepper Motor active on social media?
Yes, 35PM48L01-SG10 PM Geared Stepper Motor is active on Facebook.
